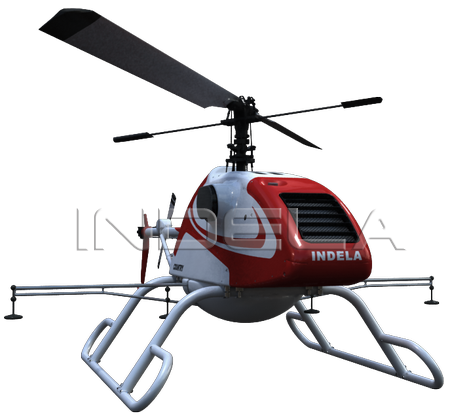

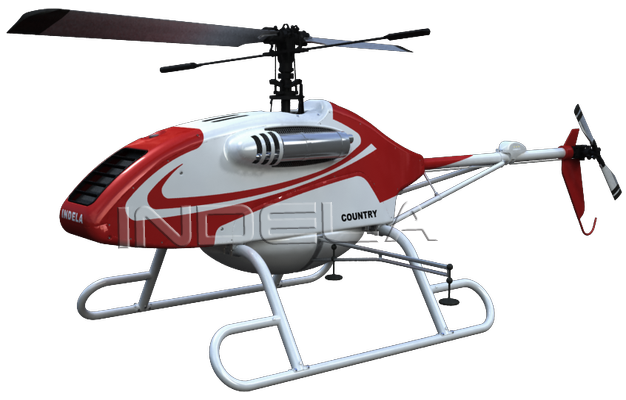

INDELA COUNTRY
Unmanned airborne vehicle of vertical takeoff and landing
Description
«INDELA COUNTRY» belongs to the class of light helicopters, which can be used for the performance of airborne chemical works. Utilization of an unmanned helicopter has a significant advantage when compared to standard ways of cultivation of fields:
- the way of handling the helicopter is extremely easy;
- the helicopter makes it possible to use pesticides and herbicides more efficiently in the specified area;
- remote utilization is safe for people;
With consideration to the fact that it is an airborne vehicle, reliability is a very important requirement. All electronic components have been designed in drip-proof shells in order to be protected from splashes of chemicals. Controlling electronics consists of many processors, which constantly monitor the components in order to ensure normal operation. In case of a failure, the helicopter will stop and hover over the place. The unit doesn’t require an extremely highly skilled staff.
Unmanned airborne vehicle «INDELA COUNTRY» can be used by special units combating drugs in order to liquidate
plantations of marijuana and other plants containing narcotic substances.
Characteristics
| Engine | four-cycle, two-cylinder, water-cooled | |
| Takeoff power | kW | 26 |
| Fuel consumption | l/h | 7 |
| Key geometric characteristics | ||
| Length with main rotor | mm | 3754 |
| Length Nose to Tail | mm | 3000 |
| Main rotor diameter | mm | 3168 |
| Height | mm | 1234 |
| Wheelbase | mm | 1100 |
| Weight data | ||
| Maximum takeoff weight | kg | 124 |
| Weight | kg | 90 |
| Useful load | kg | 24 |
| Fuel-carrying capacity | l | 10 |
| Basic flight characteristics | ||
| Maximum speed horizontal level flight | km/h | 60 |
| Flight duration (height 5 м) | h | 1 |
| Wind (takeoff and landing) | m/s | 10 |
| Available power | ||
| Payload electrical power | W | 400 |
| Carrying out of chemical treatment | ||
| Flight speed during chemical treatment | km/h | 10-20 |
| Time for treatment of 1 hectare | min | 6 |
| Consumption of process solution | l/min | 0,9-2,75(controlled) |
| Width of treated area at the height of 3-4 m | m | 3,7-7,5(controlled) |
| Volume of dispersion per 1 hectare | l | 4,5-10(controlled) |
The complex includes:
airborne vehicle «INDELA COUNTRY»
control transmitter
