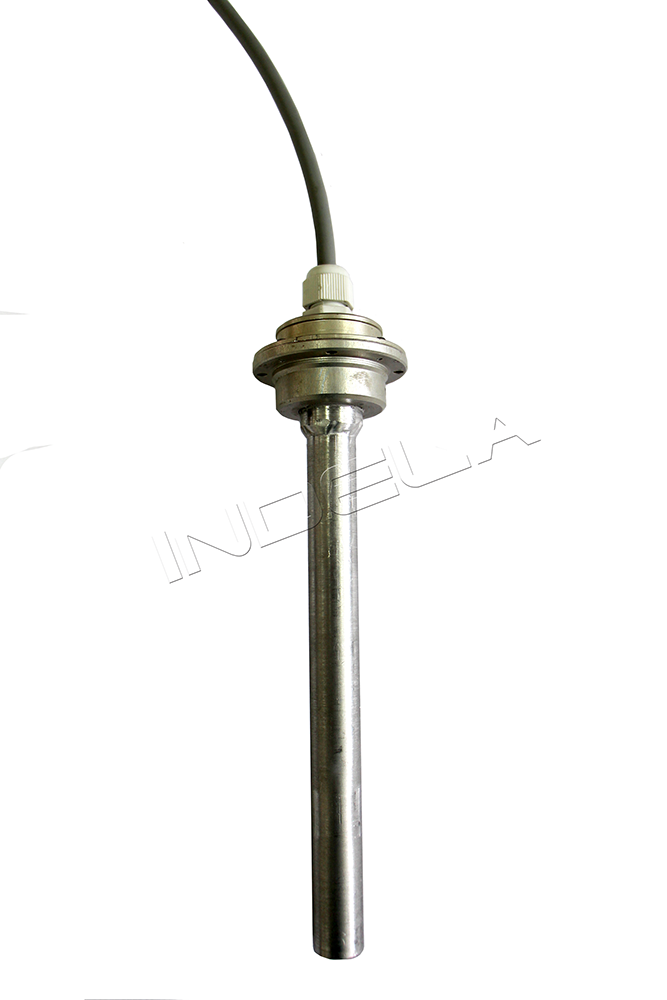

INDELA FLS
Aviation Fuel Level Sensor
Description
Advantages:
- Aimed for measuring petrol A95 level and aviation kerosene
- Temperature compensation with adjusted coefficient
- Wide range of supply voltage
- Wide range of operating temperatures
- Calibration and zero adjustment
- Digital interface
- Self-diagnosis
- High reliability
- Adjustable interval of signal filtering
- Allows cutting and advancing of tubes length for installation in fuel tanks of complex geometrical shape and different volumes
Aviation fuel level sensor –is a capacitive meter, used for determining the level and volume of fuel in aircraft tanks, as well as fuel consumption. The sensor is resistant to vibration. Being calibrated on a concrete platform.
Technical characteristics
| Supply voltage range | V | 8 - 55 |
| Interface | RS485 / RS232 | |
| Operating principle | capacitive | |
| Length | mm | to order, 180 / 250 / 350 / 500 or another |
| Level of body protection | IP65 | |
| Operating temperatures range | ºС | -40 - +85 |
| Mass | gr | 168 |
