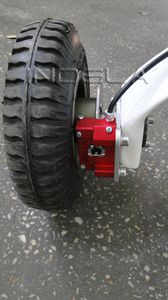

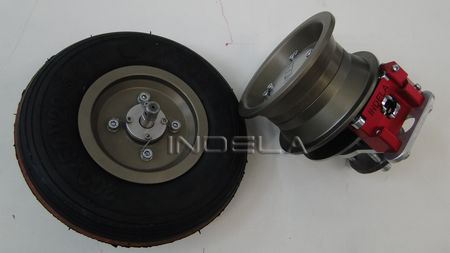

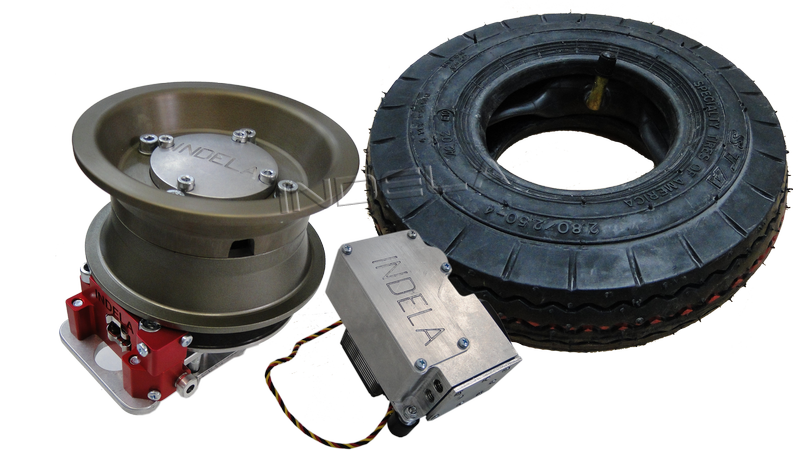

Wheels with hydraulic disc brakes, specially designed for UAV with the weight from 80-150 kg. Wheel cast discs, produced with Almag 35 (MIL-A-10 935, 36, 37), high-quality magnesium and aluminium alloy. Special tubed four-layered aviation tires TOST-AERO possess necessary for UAV operation output capability. Hydraulic brakes with two two-cylinder supports and brake discs provide a minimum braking distance with a maximum braking efficiency even in the most unfavourable conditions. Wheels have equal basic construction. They are comfortable for mounting and safe for operation. The set consists of a wheel with the size of 200x50 mm, not equipped with a braking system and two wheels 255x110 with a hydraulic system and a control unit.
Size | 200x50 | 255x110 |
PR/LI | 6PR | 4PR |
Tread pattern | Aero | Aero |
TL/TT | TT | TT |
Composition of the set | Tubed tire | Tubed tire |
Maximum rate | 150 | 150 |
Tire diameter | 190 | 250 |
Tire width | 54 | 105 |
Load weight on one wheel | 150 | 200 |
