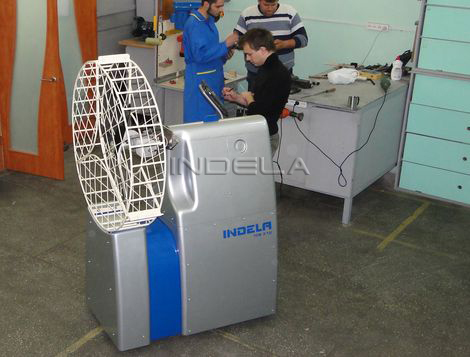

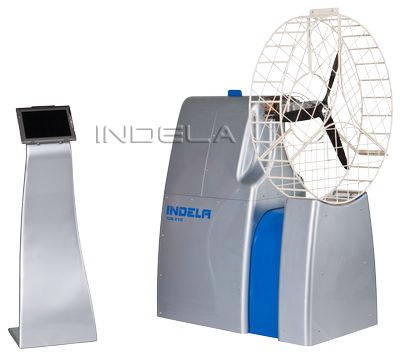

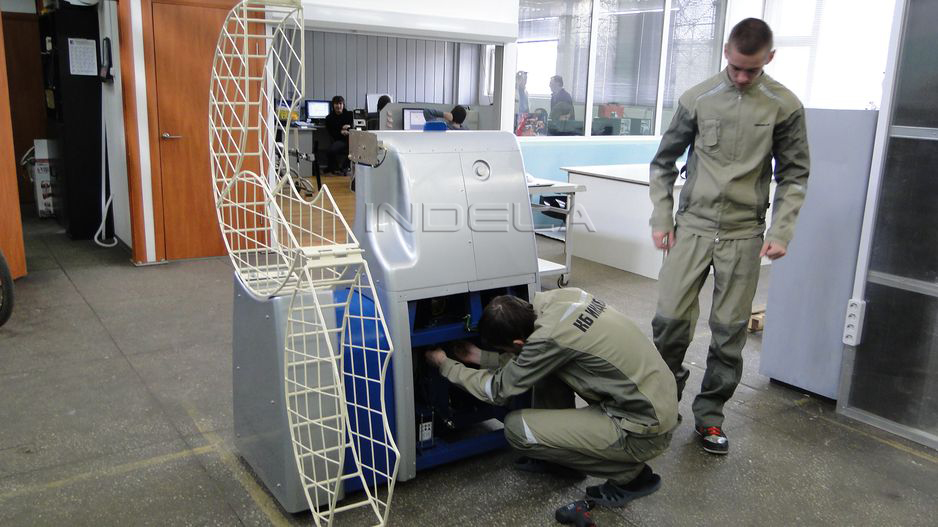

INDELA TCB 210
Engine break-in and test bench
Description
Resources of test bench:
- Automatic and manual operation of system testing
- Automatic and manual control of system parameters
- Test sequences programming
- Presentation of system statuses in charts
- Recording and analysis of the operation of the system being tested
- Saving results of the system test
- Printing out the results of the system test
- Adjustable interface
- Maximum measurement inaccuracy within ±2%
- Additional devices connect with test bench by standard interfaces RS232, RS485, CAN, I2C, а as well as analogous lines
- Connecting of a test bench to a computer by USB interface
- Connecting of a test bench to LAN by Ethernet protocol (optional)
- Embedded computer (optional)
Computer test bench is intended for troubleshooting and breaking-in of the internal-combustion engine with the volume from 50 to 650 cm³. Allows to conduct regulation works connected with engine break-in with the possibility of feed and ignition systems adjustment.

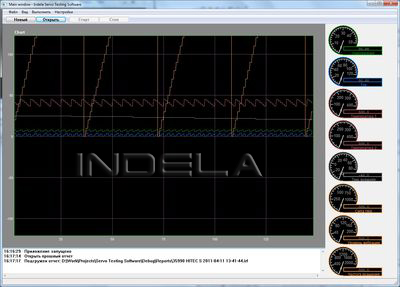

Software allows following in real time the value of measuring parameters, both in charts, and as an indicator.
Limiting value of measuring parameters
| Rotation frequency | rpm | 20000 |
| Temperature of an engine | C | 350 |
| Environmental temperature | C | 100 |
| Choke position | % | 100 |
| Fuel consumption | ml/min | 20-500 |
| Consumption current | A | 150 |
| Voltage | V | 35 |
| Force | N | 1500 |
