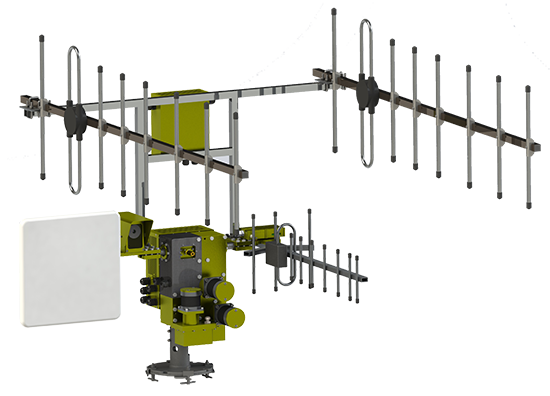

INDELA ATA-5800+
Auto positioning antenna system
Description
Data transceiver system INDELA ATA-5800+»is a complex of receiving and transmitting of telemetry and video information downlink and uplink via radio channels with the possibility to receive information at several receiving stations. At Customer’s request the data transmission from UAV into the communication line of command control center of tactic level forces is available.
Data transceiver system INDELA-ATA 3800 is designed to supply communication between ground control station and UAV at middle and long distances within line of sight at distances up to 100 km. Communication is performed via constant automatic antenna positioning on the UAV, transmitting commands to the UAV, receiving video information as well as data about status and payload in real time.
Telemetry channel (902-928MHz) with “INDELA-L15” antenna ensure communication within line of sight of up to 100 km and a digital broadband 40-Mbit communication channel (5200-5800MHz) with “INDELA-58S” panel antenna ensure data transmission (video, telemetry etc.) within line of sight of up to 45 km. Communication is supplied via constant automatic antenna positioning for an UAV with accuracy of - + 5 angular degrees.
Antenna is based on a common carrier pillar, where 11 directors for “INDELA-L15” antenna, loop vibrator, reflectors, plastic box with a matching loop, director section with 6 directors and a radio modem are located.
Combined planar antenna “INDELA-58S” with a digital broadband modem “INDELA-RM5800” is designed to transmit data at 40 Mbit (video, telemetry) within line of sight of up to 45 km. It operates in 5.8 GHz frequency range and uses Spread Spectrum technology. Many nonoverlapping channels.

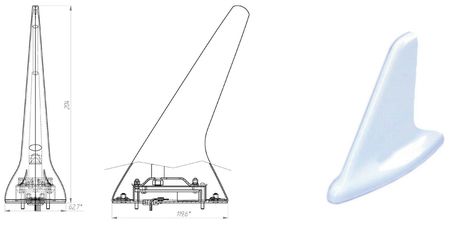

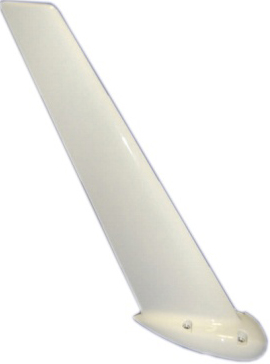

INDELA-5800A antenna.
INDELA-380A antenna.

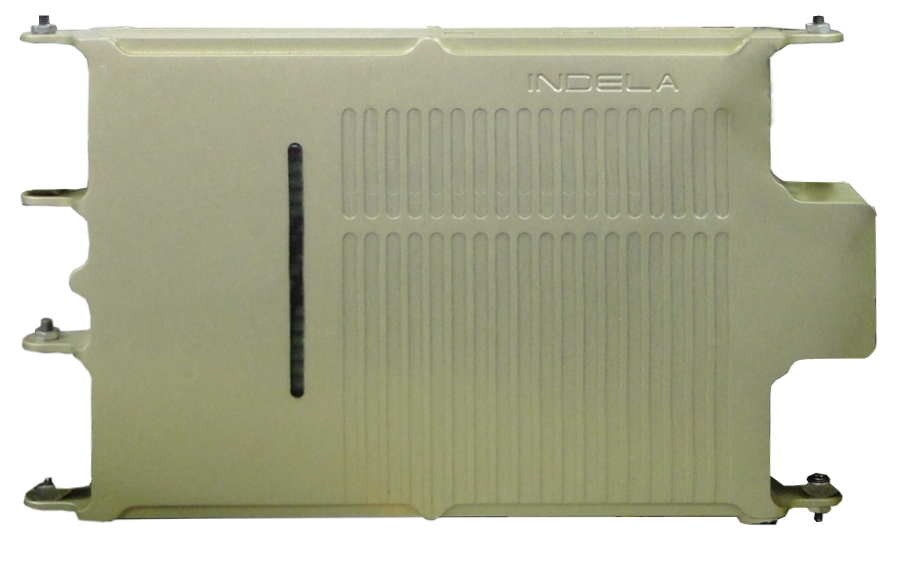

Digital broadband modem INDELA-RM5800A

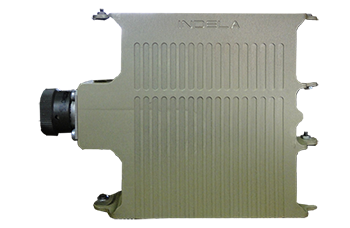

Digital СOFDM transceiver INDELA-RM380A
Key specifications
| Antenna orientation accuracy | angular degree | + 5 |
| Rated speed of antenna positioning | degree/s | 45 |
| Antenna positioning range in horizontal plane | angular degree | unlimited |
| Antenna positioning range in vertical plane | angular degree | +90 and -90 |
| Permissible wind speed | m/s | 40 |
| Permissible range of operating temperatures | °C | from -40 to +55 |
| Direct current supply unit voltage | V | 12 and 36 |
| Required oil volume (Synthetic Motor Oil) | cubic cm | 250+10 |
| Mass | kg | 18,5 |
Key specifications

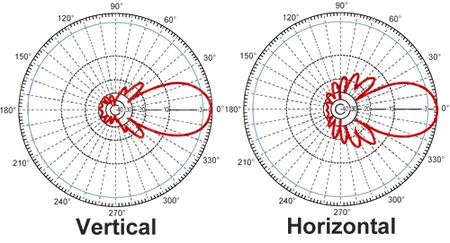

| Technical characteristics: INDELA-L15 | ||
| Antenna power gain | dBi | 16 |
| Directivity | dBi | 26 |
| Impedance | Ohm | 50 |
| Number of elements | 15 | |
| Length | m | 1,2 |
| Mass | kg | 1,065 |
| Modem characteristics: INDELA-RM920 | ||
| Frequency range | 902-928 MHz | |
| Propagation method | Frequency Hopping/DTS | |
| Error correction | Hamming, BCH, Golay, Reed-Solomon | |
| Error detection | 32-bit checksum, ARQ | |
| Encoding | Optional | |
| Communication range | Up to 100 km within line of sight | |
| Sensitivity | -108 dBm at 10{-6} BER | |
| Output power | 100mW – 1W (20-30 dBm) | |
| Serial interface | TTL | |
| Rate of exchange with the host | 230.4 Kbit | |
| Rate of exchange on the air | 19.2 Kbit – 1.3824 Mbit | |
| Operation modes | Point-to-Point, Point-to-Repeater, Peer-to-Peer | |
| IP3 input (antenna) | +12 dBm | |
| Receiver sensitivity | ||
| Chosen channel | 60 dB | |
| Adjacent channel | 75 dB | |
| Outside the range | >90 dB | |
| Power consumption | ||
| Supply voltage | 8-14 V | |
| Sleeping mode | < 1 mA | |
| No contact | 20 mA | |
| Data import | <280 mA | |
| Data transmission | <1500 mA | |
| Temperature range | -40 - +85 С | |
Auto positioning antenna system’s operation can be divided into the following stages:
a) 900 MHz antenna together with a modem receives telemetric signals from an aircraft and transmits them via connecting device (interface 10/100BaseT) to the ground control station host computer.
b) Ground control station host computer makes necessary calculations and on the basis of data obtained forms instructions for electric motor control unit.
c) Electric motor control unit effects timely switching on/off of electric motors depending on the instructions received via the connecting device as well as controls rotation speed, rotation direction and number of rotations of each motor separately. As a result rotary support effects positioning of antennas for an unmanned airborne vehicle with the accuracy of - + 5 angular degrees.
d) Receiving planar 5800 MHz antenna together with “INDELA-RM5800” digital broadband modem receives, processes and transmits data via connecting device (interface 10/100BaseT) to the ground control station.
Additional video camera in the auto positioning antenna system allows carrying out visual control during takeoff and landing. Delivery set does not include thermobox with a video camera. Neither it includes basis, which is designed and manufactured by the consumer depending on the application environment. System’s user decides himself where to maintain the rotary support: onto a mast, car roof, building roof or onto the ground. When choosing a place and method of mounting, one should provide line-of-sight propagation of the signal.Key specifications

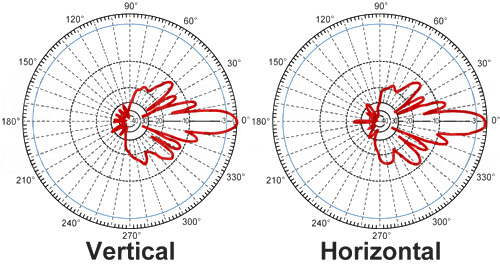

| Technical characteristics: INDELA-58S | ||
| Operating frequency range | MHz | 5800 |
| Antenna power gain | dBi | 23 |
| Horizontal flare angle | degree | 11 |
| Vertical flare angle | degree | 11 |
| Modem specifications: INDELA-RM5800 | ||
| Operating frequency range | 5800 MHz | |
| Error detection | ARQ | |
| Control | Telnet, SNMP, RADIUS | |
| Data transmission rate | 54 Mbit/s half duplex, adjustable | |
| Transmitter power | up to 36 dBm EIRP (including antenna) | |
| Transmitter sensitivity | -114 dBm (including antenna’s 23 dBi ) | |
| Transmission type | OFDM/QPSK/16QAM/64QAM | |
| Interface | 10/100BaseT IEEE802.3 | |
| Operating temperature | -40 – +85 Cº | |
| Mass | 2,5 kg | |
| Size | 305*305*70(mm) | |
| Power consumption | ||
| Input voltage | 12 up to 28 Volts DC | |
Key specifications

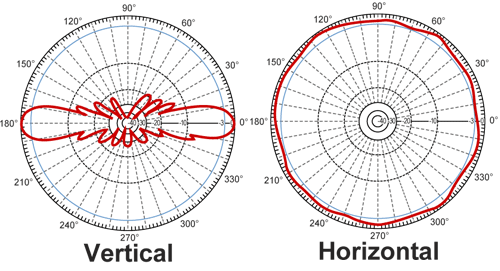

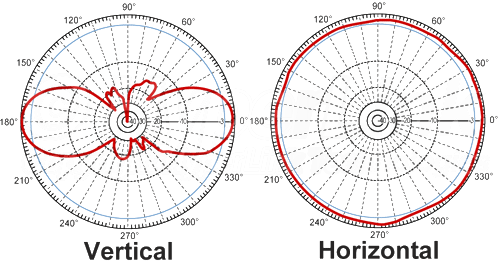

| On-board antenna characteristics: INDELA-5800A | ||
| Antenna power gain | dBi | 8 |
| Frequency | MHz | 5725-5850 |
| Impedance | Ohm | 50 |
| Polarization | vertical | |
| Horizontal beam width | degree | 360 |
| Vertical beam width | degree | 16 |
| Maximum input power | W | 100 |
| Mass | gram | 130 |
| Modem characteristics: INDELA-RM5800A | ||
| Operating frequency range | 5.2-5.8 GHz | |
| Transmission type | OFDM/QPSK/16QAM/64QAM | |
| Error detection | 32-bit checksum, ARQ | |
| Communication range | Up to 50 km within line of sight | |
| Output power | 36 dBm (including antenna) | |
| Sensitivity | -94 dBm | |
| Interface | Serial Data, RS232, RS422, RS485, LAN Ethernet 10/100BaseT IEEE802.3 | |
| Rate of exchange on the air | 54 Mbit | |
| Operation modes | Point-to-Point, Point-to-Repeater, Peer-to-Peer, Mesh | |
| Operating temperature | -40 – +85 Cº | |
| Mass | 0,398 kg | |
| Size | 135*89*50 mm | |
| Power consumption | ||
| Supply voltage | 12-30 V | |
Key specifications

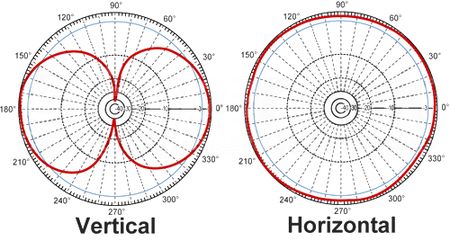

| On-board antenna characteristics: INDELA-900A | ||
| Antenna power gain | dBi | 3 |
| Impedance | Ohm | 50 |
| Mass | kg | 0,17 |
| Modem characteristics: INDELA-RM920A | ||
| Frequency range | 902-928 MHz | |
| Propagation method | Frequency Hopping/DTS | |
| Error correction | Hamming, BCH, Golay, Reed-Solomon | |
| Error detection | 32-bit checksum, ARQ | |
| Communication range | Up to 100 km within line of sight | |
| Sensitivity | -108 dBm | |
| Output power | 100mW – 1W (20-30 dBm) | |
| Serial interface | TTL | |
| Rate of exchange with the host | 230.4 Kbit | |
| Rate of exchange on the air | 19.2 Kbit – 1.3824 Mbit | |
| Operation modes | Point-to-Point, Point-to-Multipoint, Store &Forward Repeater, Peer-to-Peer | |
| Power consumption | ||
| Supply voltage | 8-14 V (12-28 V optional) | |
| Sleeping mode | < 1 mA | |
| No contact | 20 mA | |
| Data import | <280 mA | |
| Data transmission | <1500 mA | |
| Temperature range | -40 - +85 С | |
KIT DESCRIPTION:
Auto positioning antenna system (INDELA-ATA) - 1 piece.
Telemetry channel antenna (INDELA-L15) - 1 piece.
Telemetry channel modem (INDELA-RM920) - 1 piece.
Planar telemetry and video channel antenna (INDELA-58S) - 1 piece.
Telemetry and video channel modem (INDELA-RM5800) - 1 piece.
Ground control station software and data exchange protocol description - 1 piece.
On-board telemetry and video channel antenna (INDELA-5800A) - 1 piece.
On-board telemetry and video channel modem (INDELA-RM5800A) - 1 piece.
Antenna with an on-board telemetry channel modem (INDELA-RM920A) - 1 piece.
